Printing techniques (1450–1850)

Relief printing is the oldest mechanised method. In woodcut, a block is carved so that the image area stands proud and takes ink; the surrounding wood is cut away. In movable type, each sort is itself a relief surface. Relief printing suits sharp linear marks and typographic composition; it struggles with continuous tone and fine gradation.

Intaglio printing reverses the logic: ink is pushed into grooves and recesses in a metal plate, the surface wiped clean, then damp paper pressed hard against the plate to lift the ink from the incised marks. Engraving uses a burin to cut directly into copper; etching uses acid to bite marks drawn through a wax ground; mezzotint rocks a toothed tool across the entire plate before burnishing back highlights; aquatint uses acid and a resin ground to produce tonal areas. Each technique produces a different mark quality. Dürer’s engravings and Rembrandt’s etchings both work in intaglio, but they look nothing alike.

Planographic printing — lithography — exploits the mutual repulsion of grease and water. The artist draws or writes on a flat limestone surface with a greasy crayon or ink. The stone is wetted, then inked: the greasy image accepts ink; the wet stone rejects it. Paper pressed against the stone lifts a clean impression. Lithography democratised image reproduction — it required no special engraving skill and could reproduce drawing and handwriting directly.

The techniques worked out between 1450 and 1850 set aesthetic and technical standards that lasted into the digital era. The hand press’s discipline of precise letterforms and spatial geometry became the foundation of modern typography. Relief printing shaped the visual language of woodcut illustration and later poster design. Intaglio’s tonal subtlety carried fine-art printmaking and scientific illustration through three centuries. Lithography made the graphic design revolution of the 19th and 20th centuries possible — chromolithography, art nouveau posters, the cheap illustrated press, all depend on it.

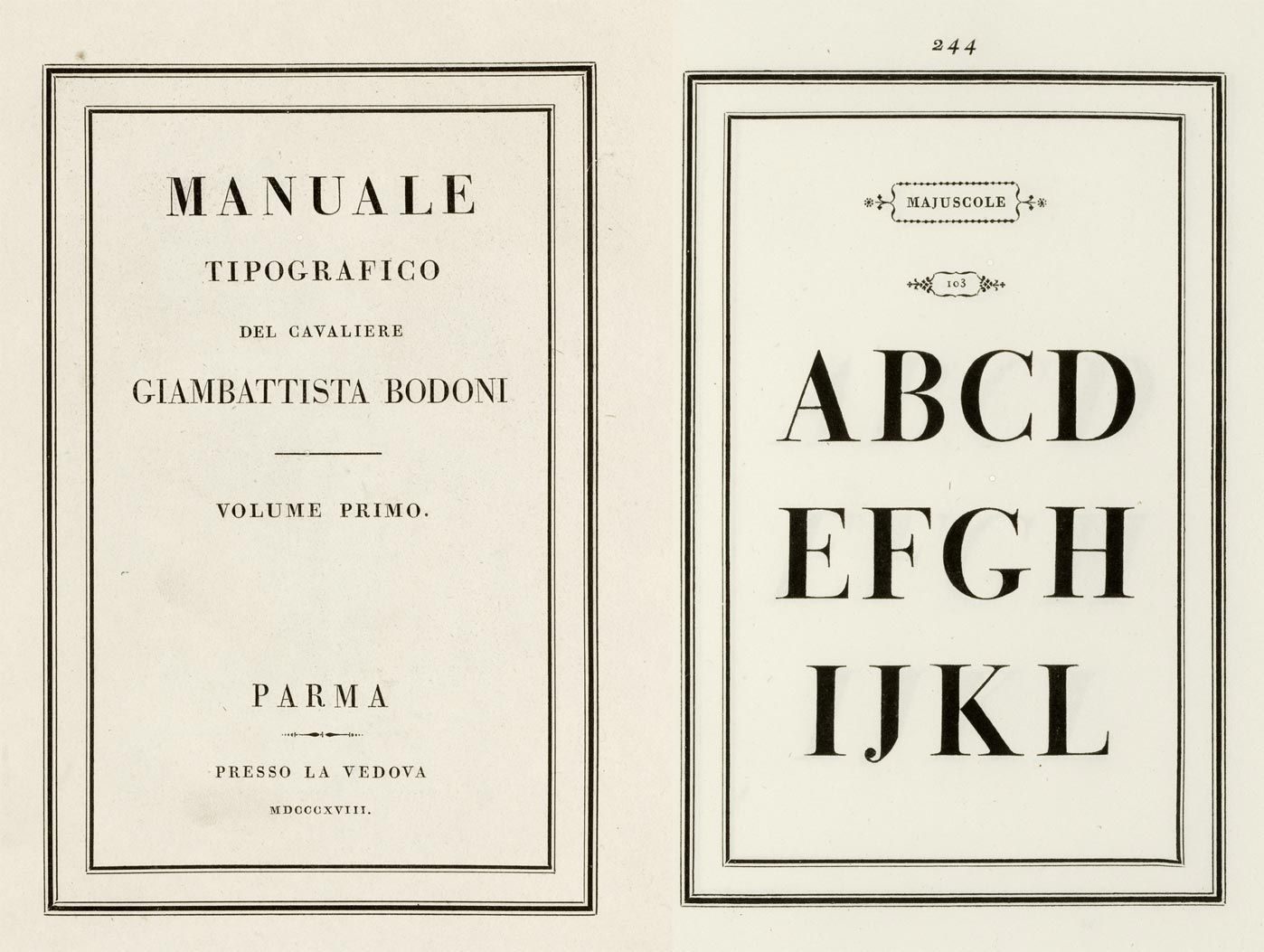

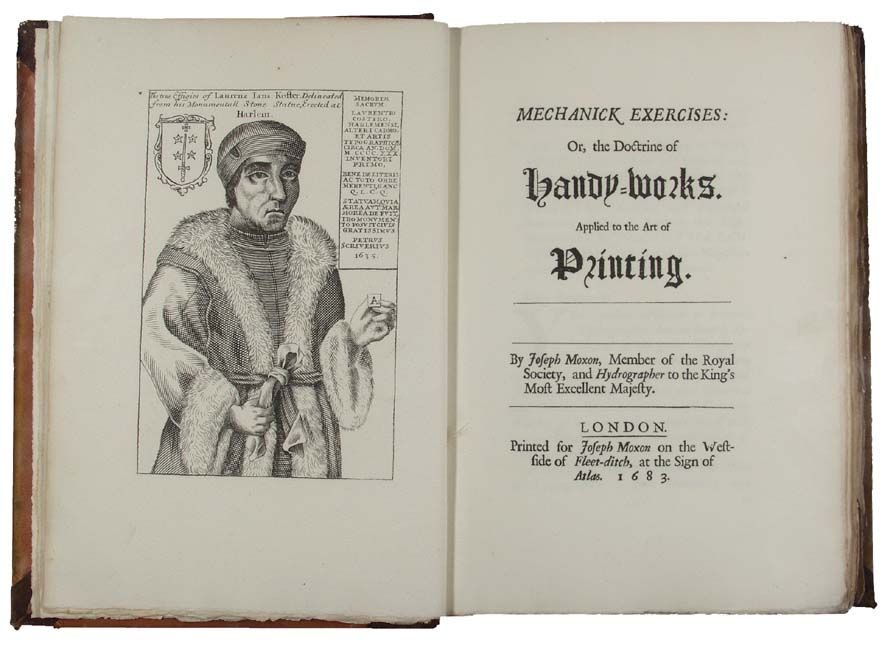

The specimen books of Bodoni and Fournier established conventions for type presentation still recognised today. Moxon’s procedural account of the craft set the model for how printing knowledge would be transmitted — not through apprenticeship alone, but through written documentation. Most fundamentally, the industrial presses of the early 1800s democratised the printed word, enabling newspapers, books and visual media to reach mass audiences. That shift underpins everything in later graphic design history.
